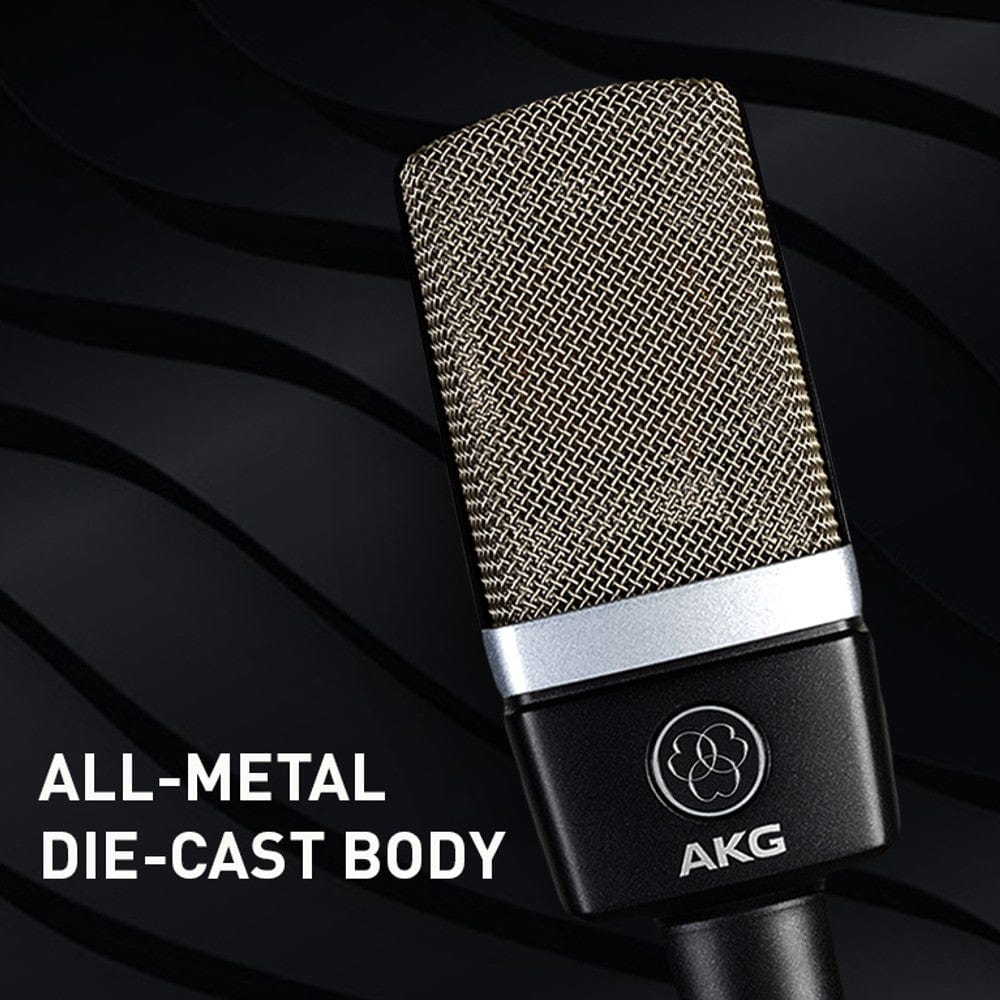

AKG C214 Professional Large Diaphragm Condenser Microphone

AKG C214 Professional Large Diaphragm Condenser Microphone Overview:

The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect. The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.

General Specifications

• Polar Pattern: Cardioid
• Audio frequency bandwidth: 20 - 20000 Hz
• Equivalent noise level: 13 dB-A
• Sensitivity: 20 mV/Pa
• Signal to Noise: 81 dB-A
• Preattenuation Pad: -20 dB
• Bass cut filter: 160 Hz
• Electrical impedance: 200 Ohms
• Recommended load impedance: 1000 Ohms

Dimensions

• Width: 56 mm
• Height: 160 mm
• Net Weight: 280 g

Design

• Finish: matte grayish blue

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Powering Interface

• Voltage: 9 to 52 V
• Current: 2 mA

Application

• Pro Studio: Yes

Instrument

• Vocals: Yes
• Piano / Strings: Yes
• Horns / Woodwinds: Yes
• Drums / Percussion: Yes
