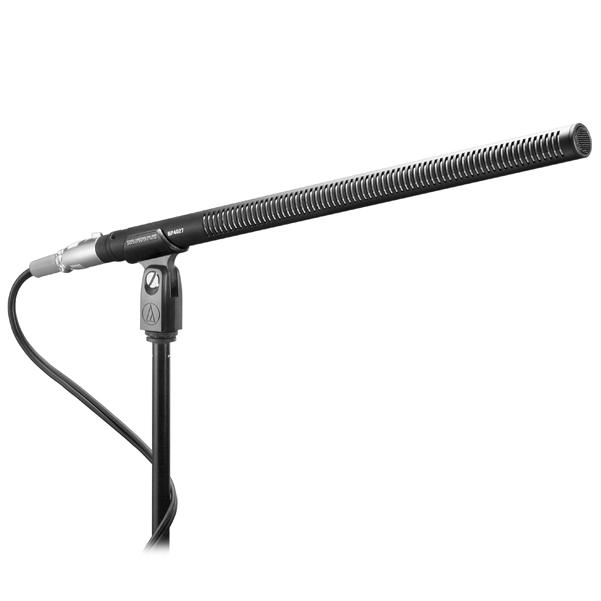

Audio-Technica BP 4027 Stereo Shotgun Condenser Microphone

Audio-Technica BP 4027 Stereo Shotgun Condenser Microphone Overview:

Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 (14.96" long) Stereo Shotgun model is engineered for high-end broadcast and production use. This mcrophone features independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. This innovative microphone allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone’s internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer.

A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use.

Features:
<\n

\n
• Designed for broadcasters, videographers and sound recordists
\n
• Compact, lightweight design is perfect for camera-mount use
\n
• Independent Line-cardioid and Figure-of-eight condenser elements
\n
• Switchable low-frequency roll-off
\n
• Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
\n
• Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM connectors)
• RoHS compliant - free from all substances specified in the EU directive on hazardous substances

Specifications:

• ELEMENTS: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERNS: Line-cardioid, Figure-of-eight
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY:
• Mid: -30 dB (31.6 mV) re 1V at 1 Pa;
• Side: -34 dB (19.9 mV) re 1V at 1 Pa;
• LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa
• IMPEDANCE: 200 ohms
• MAXIMUM INPUT SOUND LEVEL:
• Mid: 123 dB SPL, 1 kHz at 1% T.H.D.;
• Side: 127 dB SPL, 1 kHz at 1% T.H.D.;
• LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical):
• Mid: 101 dB, 1 kHz at Max SPL;
• Side: 101 dB, 1 kHz at Max SPL;
• LR Stereo: 102 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO:
• Mid: 72 dB SPL, 1 kHz at 1 Pa;
• Side: 68 dB SPL, 1 kHz at 1 Pa;
• LR Stereo: 70 dB SPL, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical at 48V, each channel
• SWITCHES: M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
• WEIGHT: 142 g (5.0 oz)
• DIMENSIONS: 380.0 mm (14.96") long, 21.0 mm (0.83") diameter
• OUTPUT CONNECTOR: Integral XLR5M-type
• CABLE: Dual 0.61 m (24") shielded two-conductor, terminated in two XLR3M-type connectors
\n
• ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; AT8135 foam windscreen; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case
• AUDIO-TECHNICA CASE STYLE: SG3
