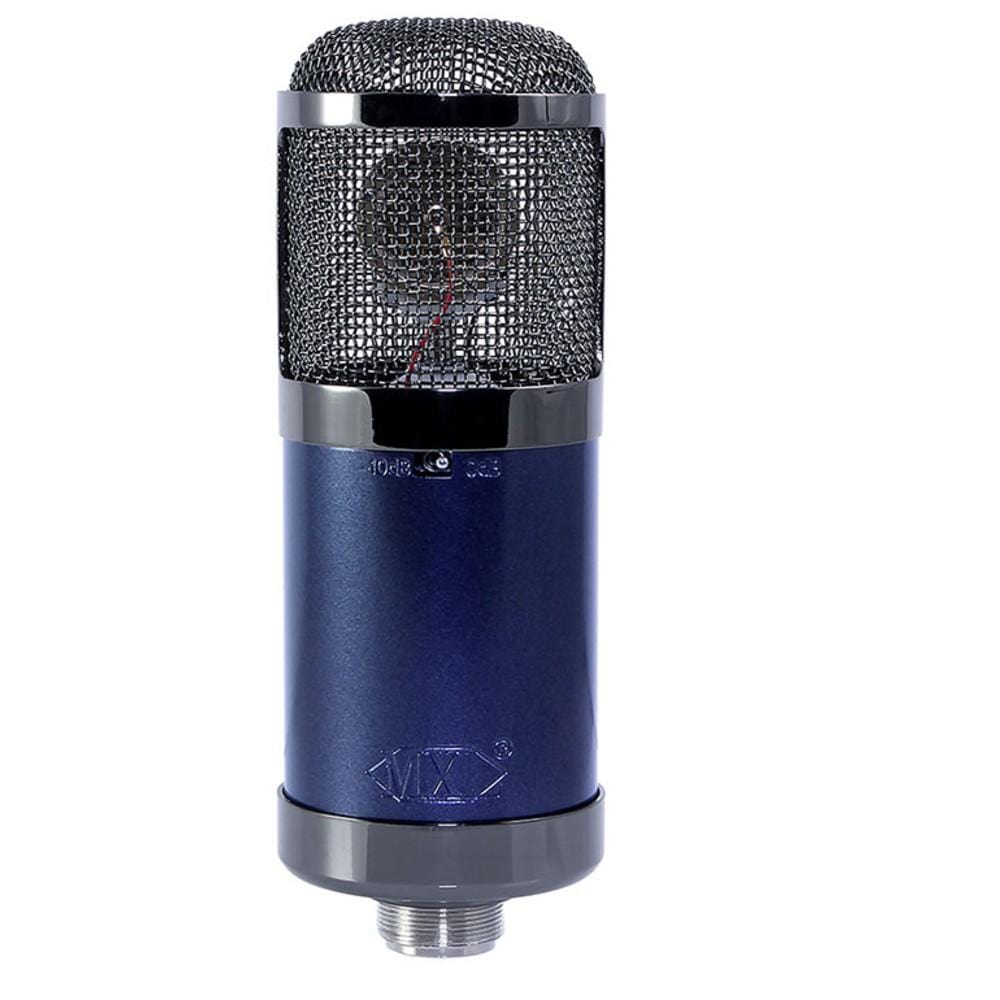

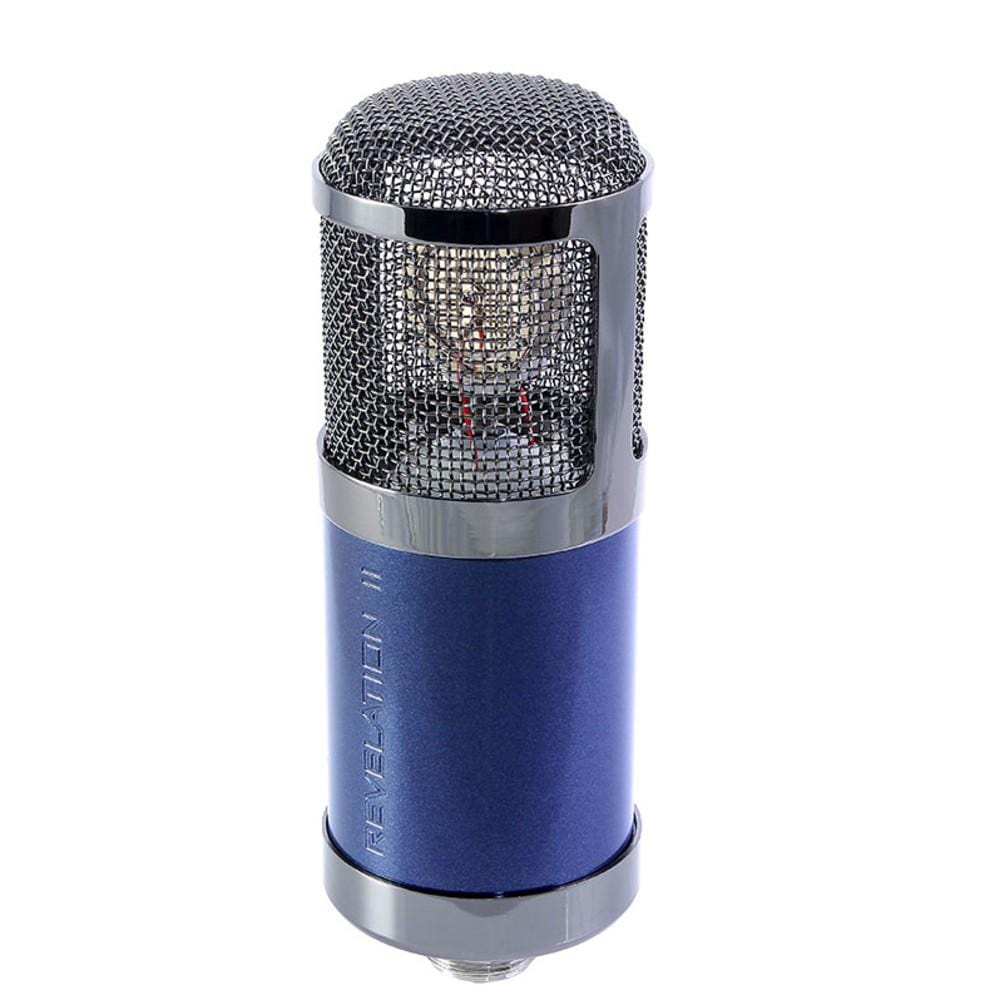

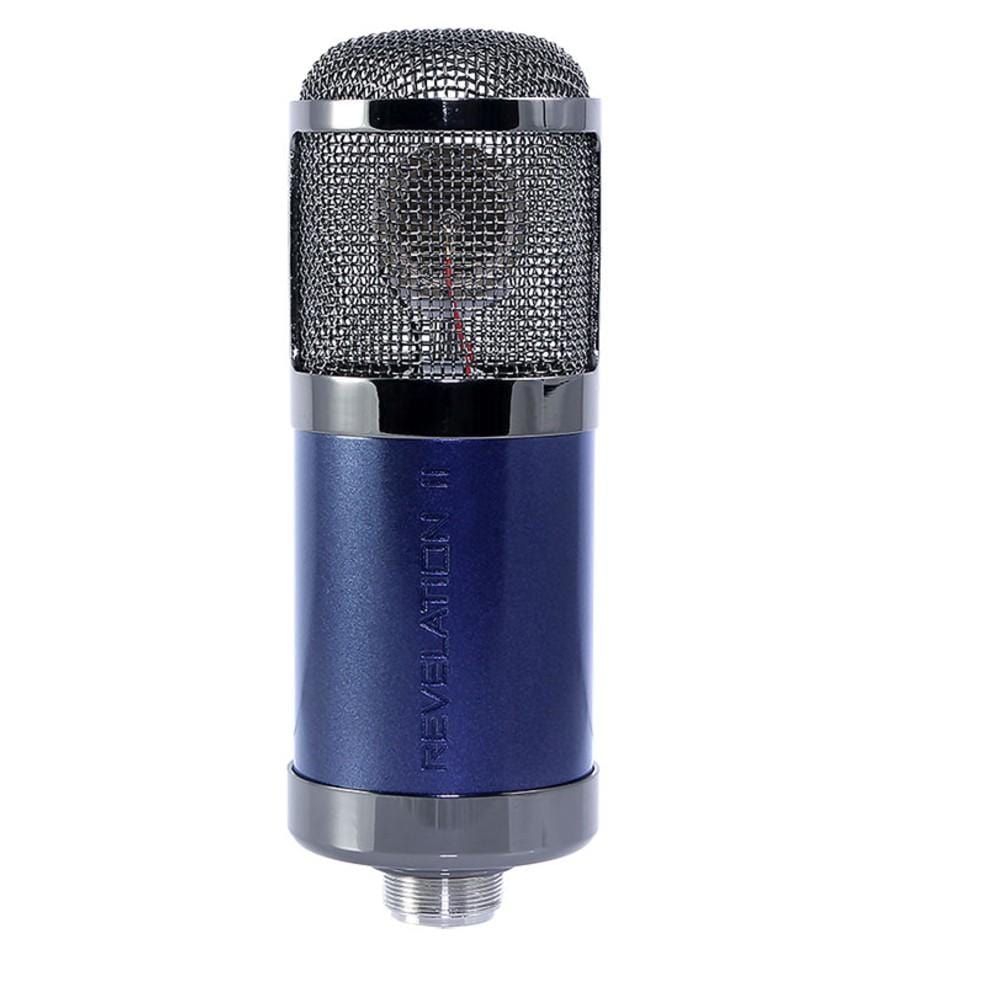

MXL REVELATIONII Variable Pattern Tube Condenser Microphone
MXL REVELATIONII Variable Pattern Tube Condenser Microphone Overview:
The MXL Revelation II is a studio microphone that delivers the warmth and intimacy of a classic tube microphone with a lush mid-range providing a unique color and sound to any microphone locker. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube provide warmth and character giving the Revelation II an iconic sound. The Revelation II's variable selection knob allows for limitless transitions between cardioid, omnidirectional, and figure-8 polar patterns. Whether you record vocals, instruments, percussion or simply use it as a room mic, the MXL Revelation II brings a classic sound in any recording application.
Features:
- Flagship tube microphone
- Variable polar pattern selection
- EF86 Pentode tube
- Natural frequency response attributes to classic sound
- Mogami cable and wiring for exceptional audio fidelity
Specifications:
- Type: Variable Pattern Tube Condenser Microphone
- Diaphragm: Dual gold-sputtered, 6 micron diaphragm
- Tube Type: EF86
- Frequency Response: 20 Hz - 20 kHz
- Polar Pattern: Continuously variable
- Sensitivity: -40 dB re 1 V/Pa
- Output Impedance: 140 ohms
- Attenuation Switch: 0 dB, -10 dB
- High Pass Filter: 12 dB/octave @ 125Hz
- Equivalent Noise: -18 dB (A-weighted IEC 651)
- S/N Ratio: 76 dB
- Max SPL for .5% THD: 138 dB SPL
- Power Requirements: Revelation Power Supply Unit 110/220 VAC, 50/60Hz
- Size: 7 1/2" X 2 1/2"/190mm x 63.5mm (mic only)
- Weight: 2 lbs / 907g (mic only)
- Metal Finish: Dark Violet and Black Chrome
Made in China
