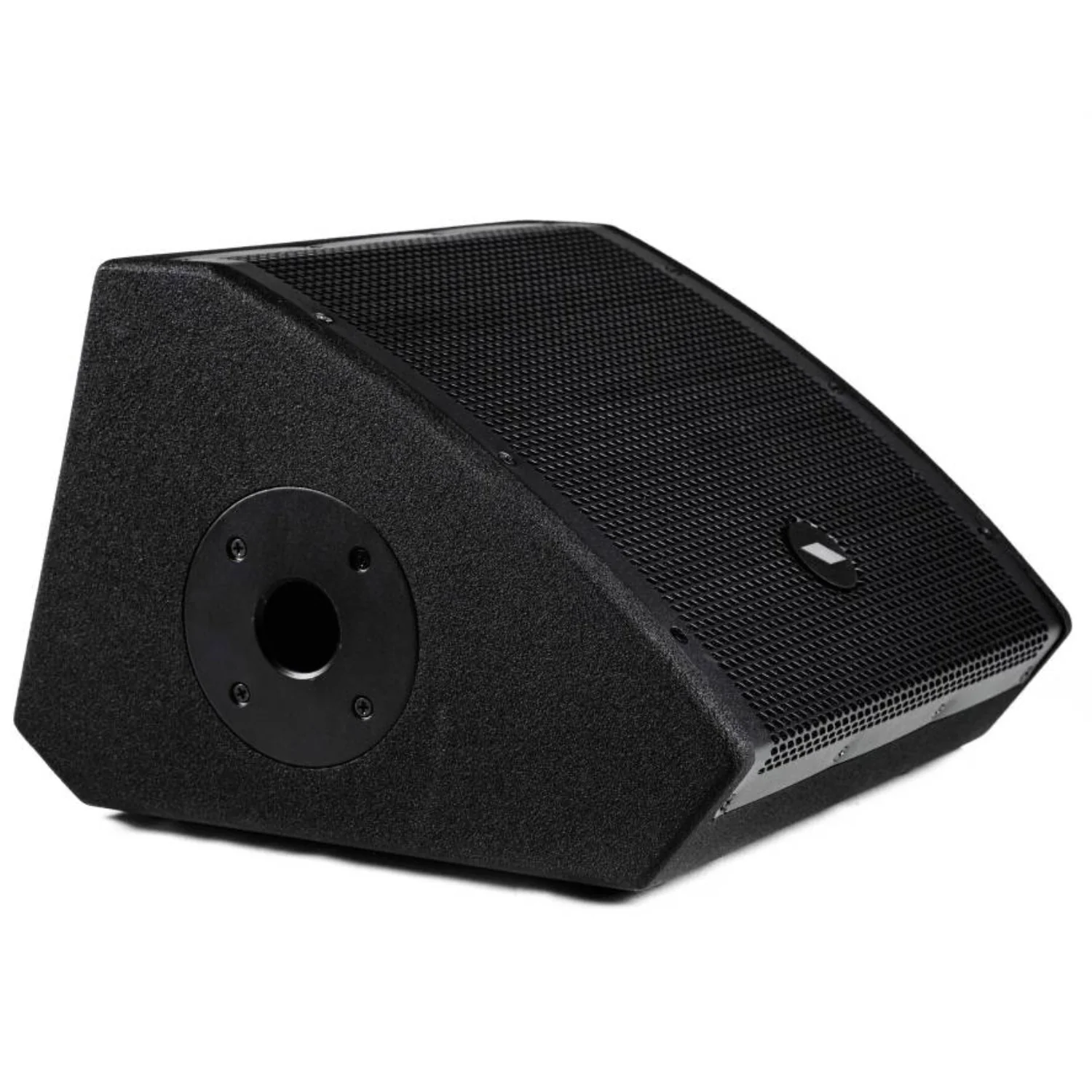

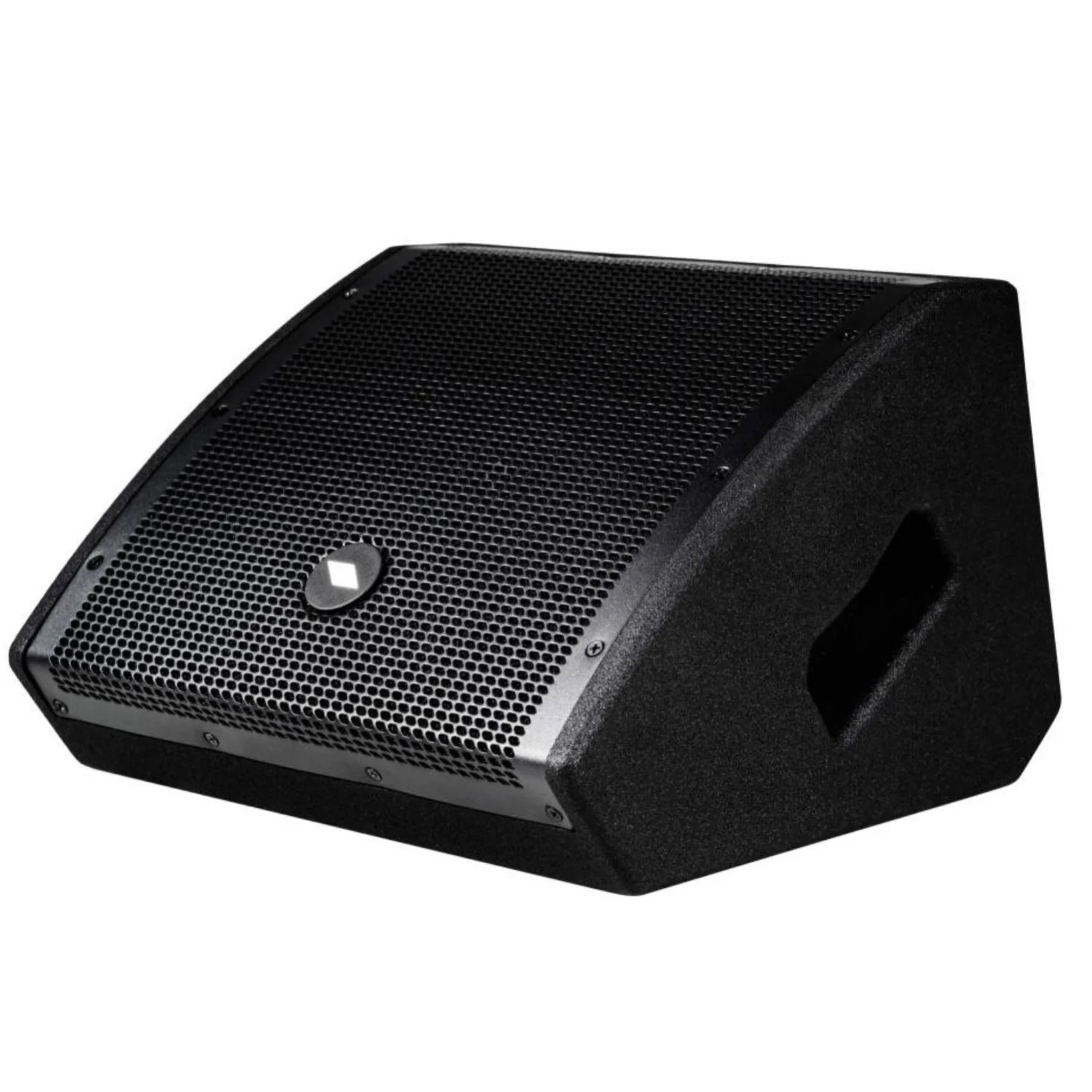

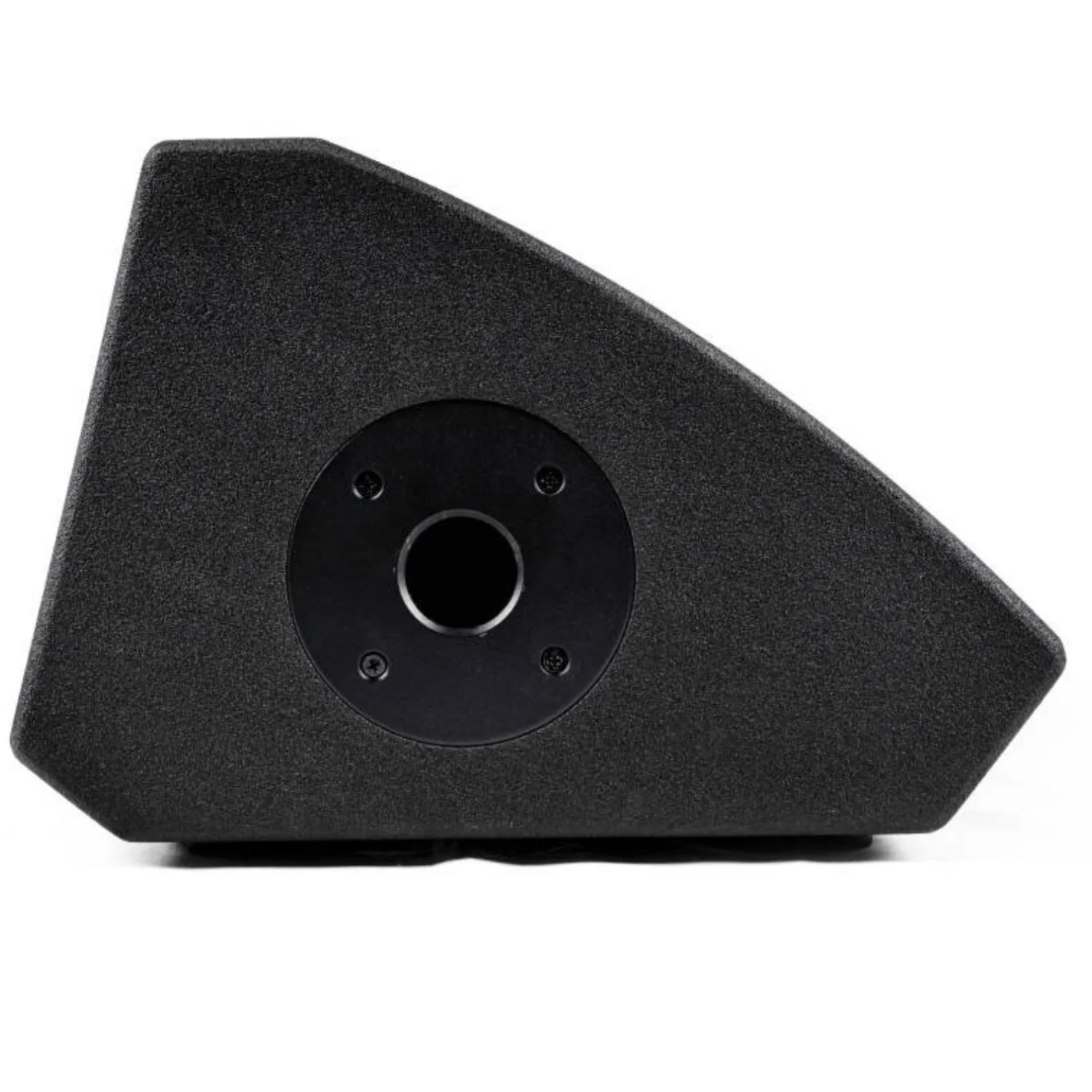

Proel WX8A 8" 500W Active Stage Monitor

Proel WX8A 8" 500W Active Stage Monitor Overview:

Active 2-way coaxial stage monitor. - 1” driver with 1” VC. - 8” woofer with 2” VC. - 500 W total Peak Power. - 2 EQ PRESETS for Monitor or FOH. - SPL MAX 122 dB. - Frequency range 80 Hz - 20 Khz. - Durable polyurethane paint. - Recessed connection panel for added protection. - Pole socket

WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.

The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.

The lightweight 500W CLASS D amplifier module with SMPS provides a high output that results in an unexpected SPL for such small loudspeakers. The sophisticated analogue processing provides a detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH) if necessary.

The WX monitors are available in two models, offering the right solution for different monitoring situations. The ultracompact WX8A can provide a high-quality monitoring also in very small spaces and it can give its best with speech, vocals and acoustic instruments. WX10A, with a higher SPL and a full-range response, is ideal for vocals, guitar, horns and electronic instruments or as a monitor for DJs.

Features:

• Active 2-way coaxial stage monitor

• 1” compression driver with 1” VC

• 8” woofer with 2” VC

• 500 W total power

• Class D power amplifier with SMPS

• Dual LIMITER circuit

• 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use

• SPL MAX 122 dB

• Frequency response 80 Hz - 20 KHz

• Ultra-compact, lightweight cabinet with black ultra-durable polyurethane paint

• Reinforced metal grille

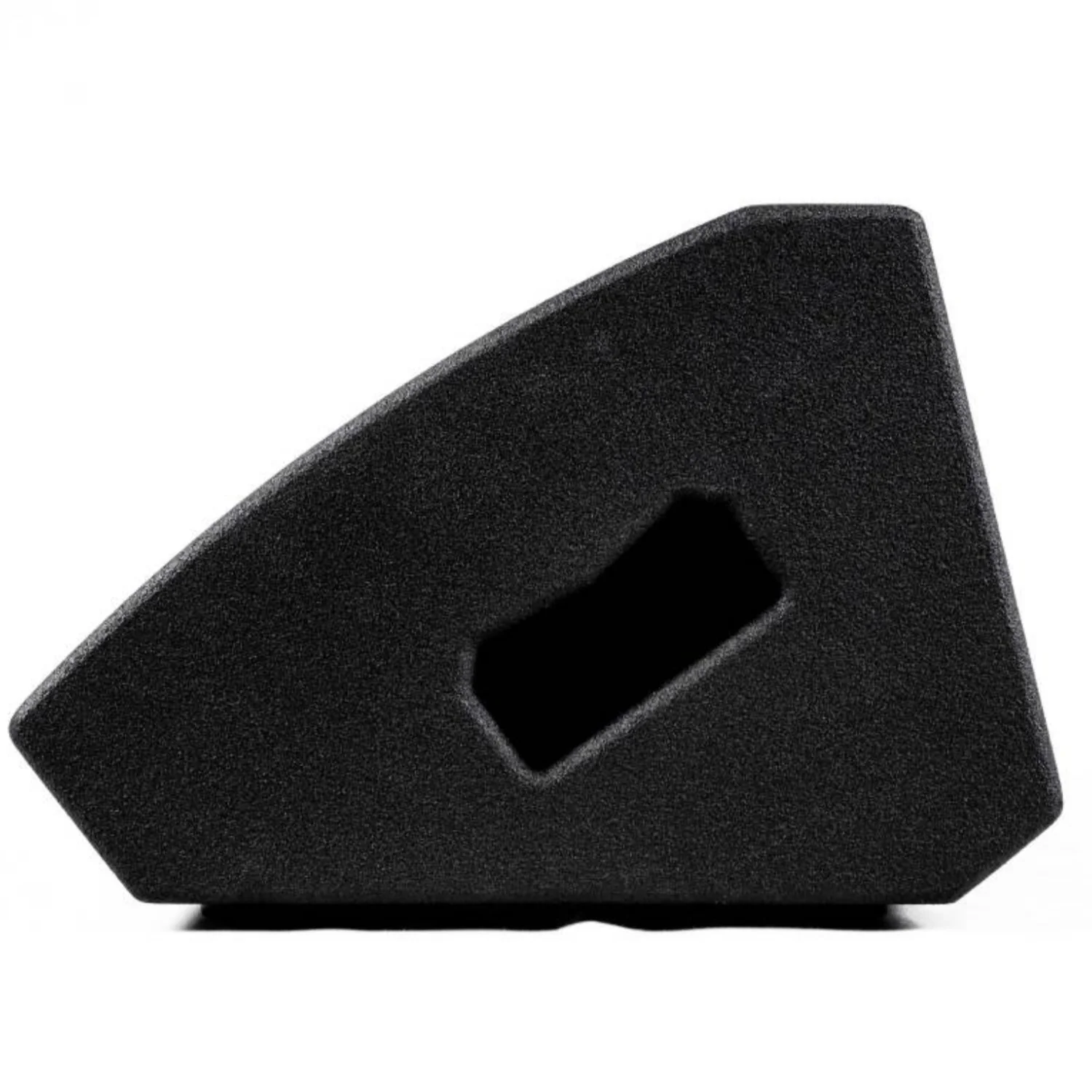

• Recessed handle for easy transport

• Pole socket



Specifications:

• System type: 2-way coaxial vented stage monitor

• Low Frequency Device: 8” woofer with 2"VC

• High Frequency Device: 1” compression driver with 1"VC

• Angular Coverage: 60°

• Frequency response: 80 Hz - 20 kHz

• Max SPL at 1mt (peak): 122 dB

• Amplifier Continuous Power: 250W CLASS D with SMPS

• Input Impedance: 30 kohm balanced, 15 kohm unbalanced

• Input Sensitivity: -10 dBu

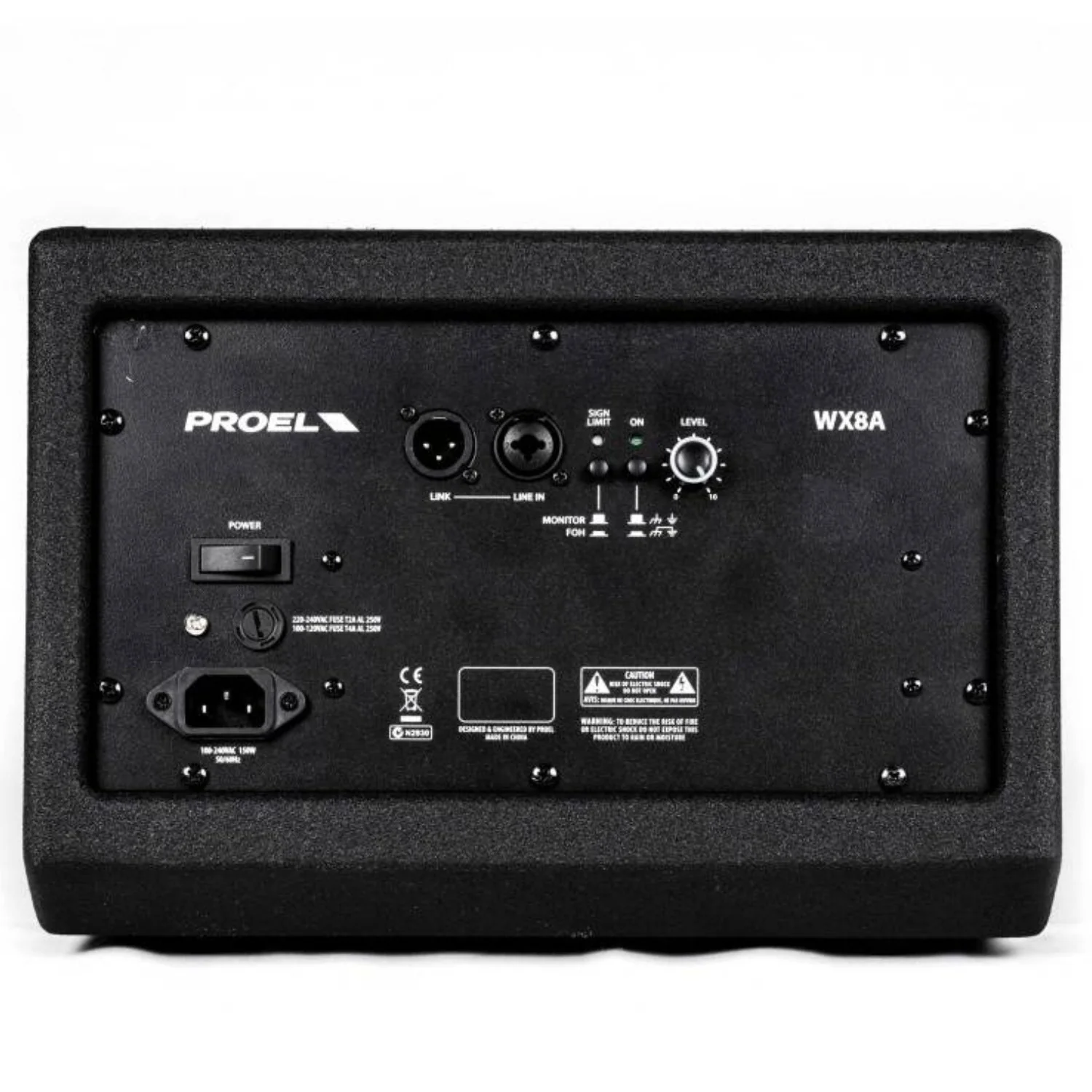

• Controls: LEVEL, PRESET selector (MONITOR, FOH), GND lift

• Connectors: INPUT: COMBO (XLR-F/JACK), LINK: XLR-M

• Power Supply: 230 VAC or 115 VAC - 50/60 Hz

• Rated Consumption*: 200 W

• Construction: MDF with black anti-scratch polyurethane paint

• Pole Adapter: 1 x side

• Handles: 1 x side

• Monitor taper: 36°

• Weight: 8 kg (17.6 lb)

• Dimensions (W x H x D): 325x336x233 mm
