QSC KW152 1000W 15" 2-Way Active PA Loudspeaker
QSC KW152 1000W 15" 2-Way Active PA Loudspeaker Overview:
Features:
- 15-inch Woofer; 1.75-inch diaphragm compression driver
- 60° conical DMT coverage
- Maximum SPL 133 dB peak
- 1000 watt Class D power modules in all models (2 x 500 W continuous)
- Onboard mixer with two combo XLR and ¼⁻ᶦⁿᶜʰ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
- Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance
- Directivity Matched Transition (DMT) ensures uniform coverage across the entire sound field
- Rugged, texture-painted birch enclosures
- Four-position Mic/Line gain (full-range models)
- Tour-grade 16 gauge steel grilles
- Comfortable ergonomic handles

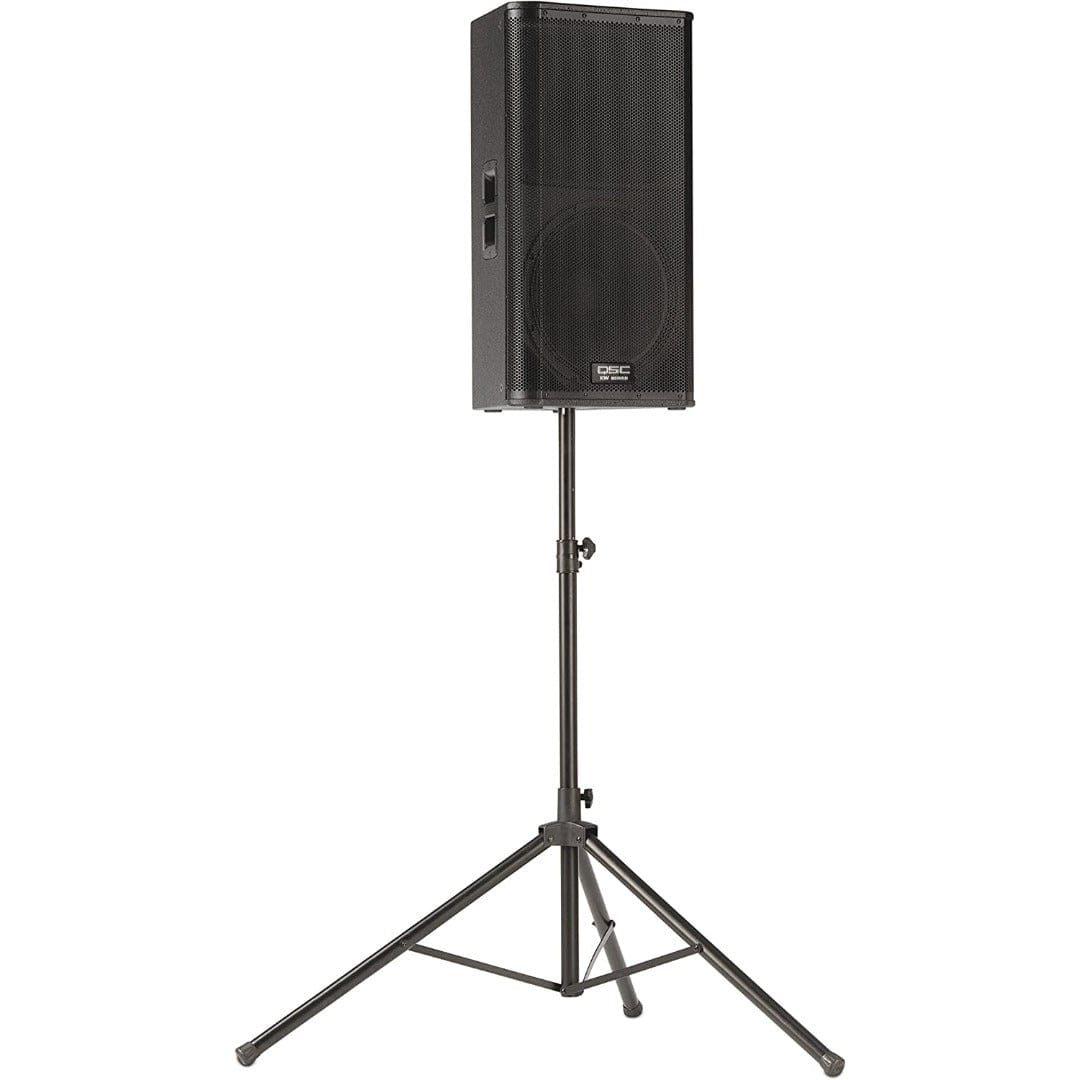

- 35 mm pole sockets with Tilt-Direct
- M10 rigging points for suspended installation
Specifications:
- Configuration 15-inch 2-way trapezoidal
- Transducers : 15-inch cone transducer
- High-frequency : 1.75-inch diaphragm compression driver
- Frequency Response (-6 dB) 47 Hz to 18 kHz
- Frequency Range (-10 dB) 44 Hz to 20 kHz
- Nominal Coverage (-6 dB) 60° axisymmetric
- Maximum SPL1 133 dB peak
- Amplifier
- Power Output2 :
- 1000 W Class D (500 W LF + 500 W HF) continuous
- 2000 W peak
- Input Impedance Channel A XLR / ¼ inch.
- Mic gain setting Balanced Unbalanced
- 0 dB 38 kΩ 19 kΩ
- +12 dB 10 kΩ 5 kΩ
- +24 dB 2.66 kΩ 1.33 kΩ
- +36 dB 660Ω 330ΩChannel B XLR / ¼ inch 38 kΩ balanced / 19 kΩ unbalanced
- Channel B RCA: 10 kΩ

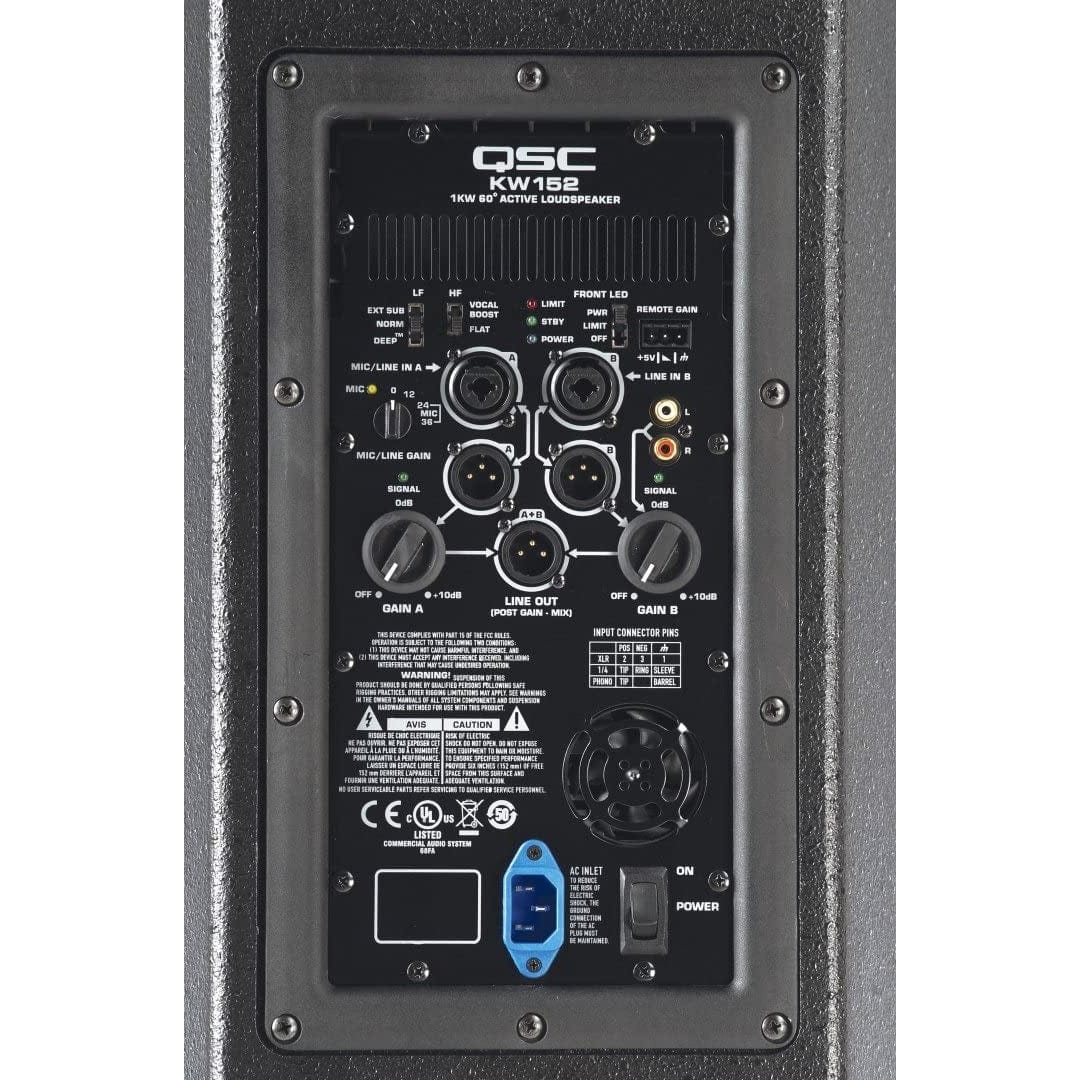

- Controls Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
- Indicators Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
- Connectors Balanced female XLR/¼⁻ᶦⁿᶜʰ line/mic level input, Balanced female XLR/¼⁻ᶦⁿᶜʰ line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
- Cooling On demand, 50 mm variable speed fan
- Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail
- Transducer Protection Thermal limiting, excursion limiting
- AC Power Input Universal power supply 100–240 VAC, 50 to 60 Hz
- AC Power Consumption
- 100 VAC, 2.3 A
- 120 VAC, 2.01 A
- 230 VAC, 1.13 A
- Enclosure:
- Material 15 mm painted birch plywood
- Finish Black textured paint
- Grille Black powder coated 16 gauge steel
- Speaker Dimensions:
- (H×W×D) 816 × 445 × 386 mm
- 32.1 × 17.5 × 15.2
- Net Weight 29 kg / 64 lb
$35,997.00
Original: $119,990.00
-70%QSC KW152 1000W 15" 2-Way Active PA Loudspeaker—
$119,990.00
$35,997.00More Images
