Sonodyne SLF 106 6" front Firing Vented Subwoofer

Sonodyne SLF 106 6" front Firing Vented Subwoofer Overview:

The SLF 106 compact subwoofer provides detailed and powerful LF extension for the smaller SRP and PM models

HIGHLIGHTS

• 6" transducer powered by AB class amp
• 2.1 channel bass management
• Discrete phase control from 0 ~ 180 deg.
• Polarity switch
• Ground lift switch
• External (foot switch controlled) bass management

SPECIFICATIONS

• DESCRIPTION Front firing vented subwoofer
• ENCLOSURE 15 mm MDF
• TRANSDUCER COMPLEMENTS 1 x 6" high excursion subwoofer
• AMPLIFIER CLASS Class AB
• AMPLIFIER POWER 80 W
• AMPLIFIER THD 0.1% at rated power
• MAX SPL 107 dB
• FREQUENCY RESPONSE 38 Hz ~ Crossover Frequency (-3 dB)
• USABLE FREQUENCY RESPONSE (-10 DB) 33 Hz
• INPUTS Left, Right and LFE, Fully balanced through XLR socket
• INPUT LEVEL FOR FULL POWER +5 dBU (1.4 V) at 120 Hz (frequency at mid and level control at max)
• OUTPUT (LINE LEVEL) Left and Right, fixed 120 Hz highpass, Fully balanced, through XLR socket
• CONTROLS 1. Crossover frequency: 60 Hz ~ 180 Hz 2. Phase: 0 ~ 180 degrees 3. Gain: -60 dB to +6 dB

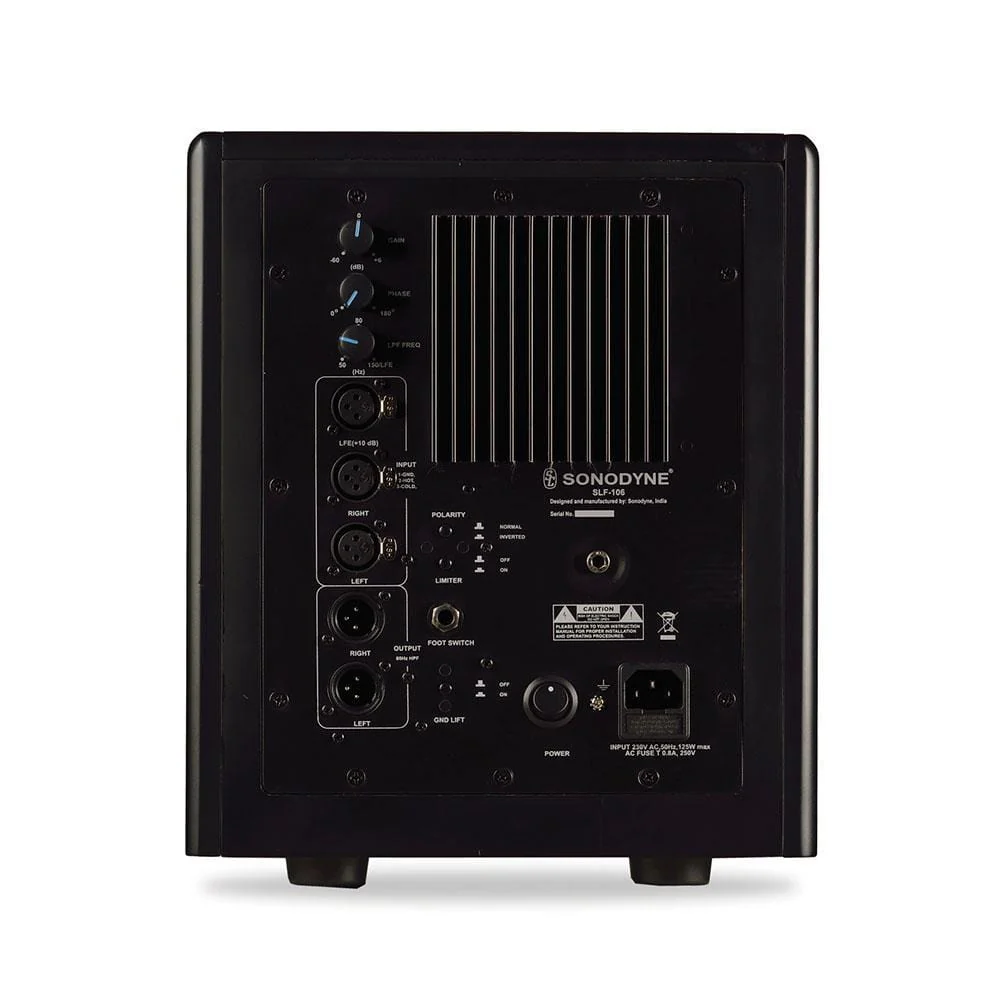

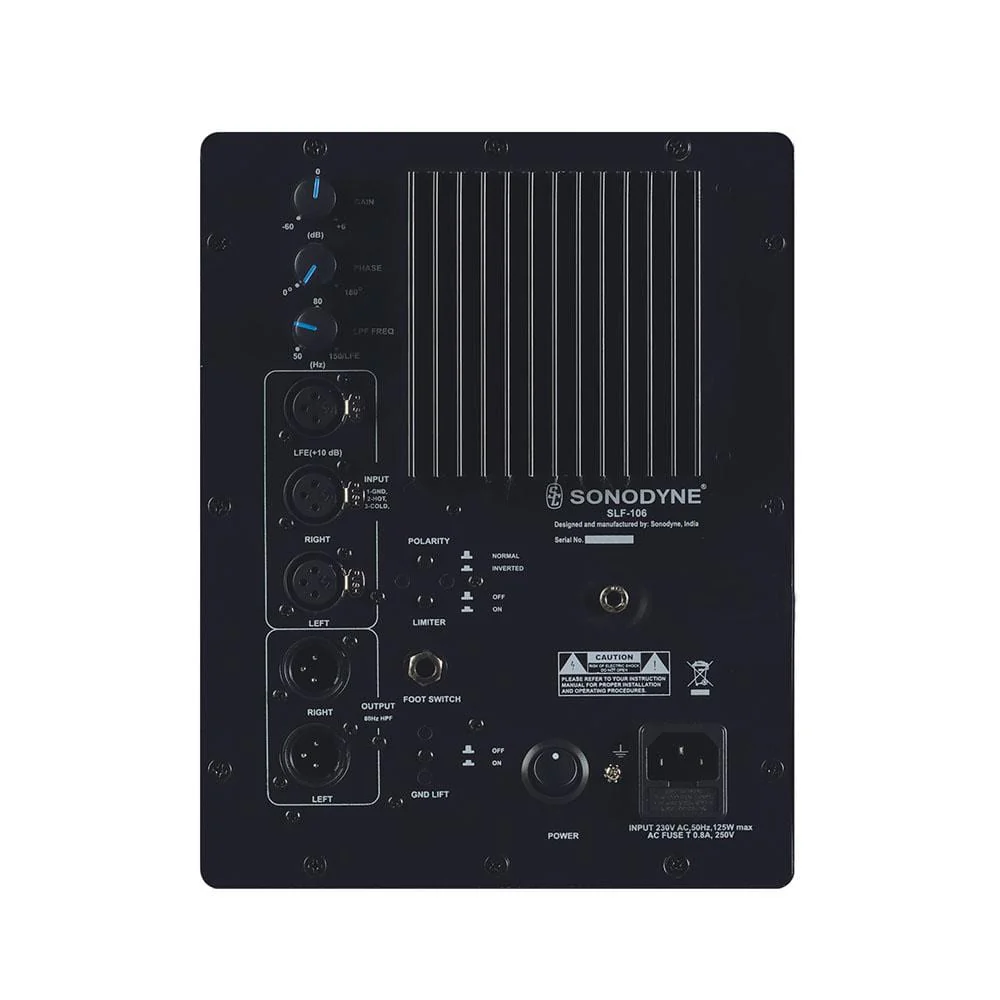

• CONTROLS - REAR Polarity, Limiter On/Off, Ground Lift switch
• FINISH Black painted
• GRILLE Black cloth grille stretched over wooden frame
• COLOURS Black
• DIMENSIONS (HXWXD) MM 310 x 270 x 415
• POWER SOURCE 230 V AC, 5 0Hz, via fused IEC inlet, 115 V optional
• POWER CONSUMPTION 125 W max at rated power

Made in India
