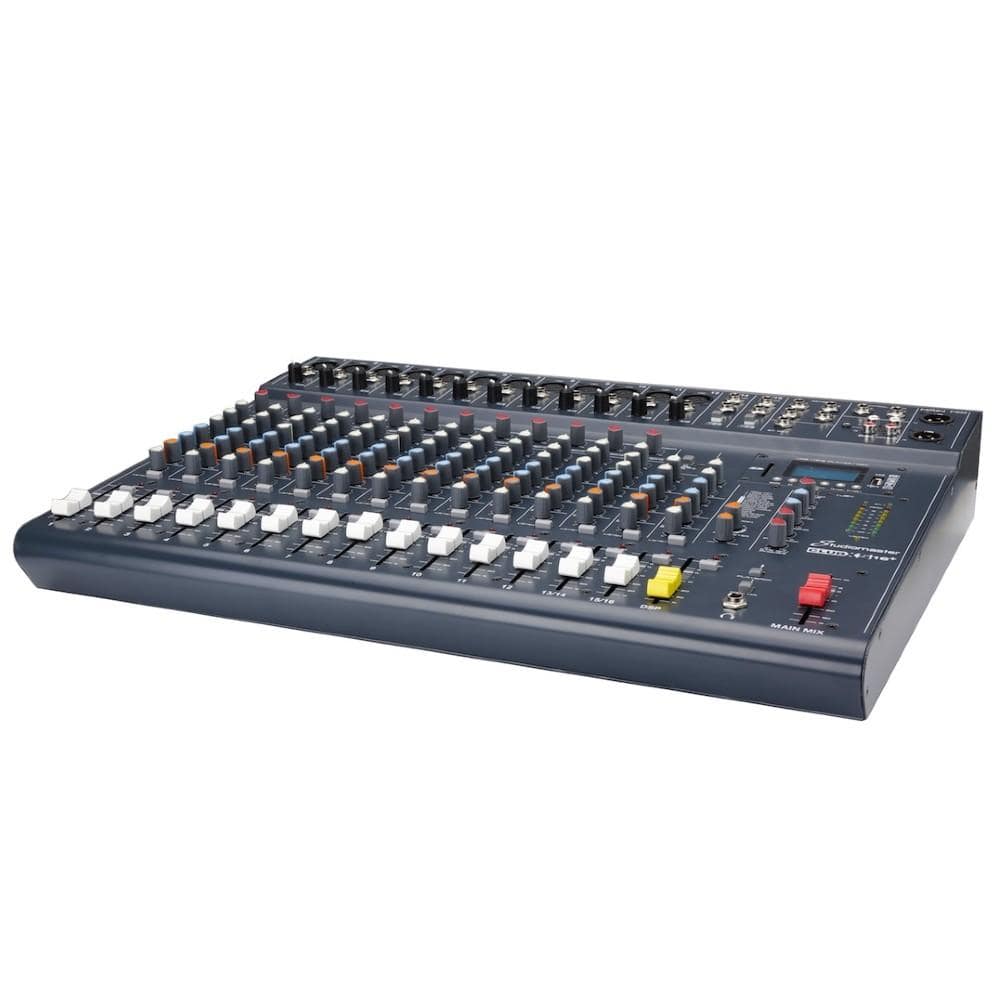

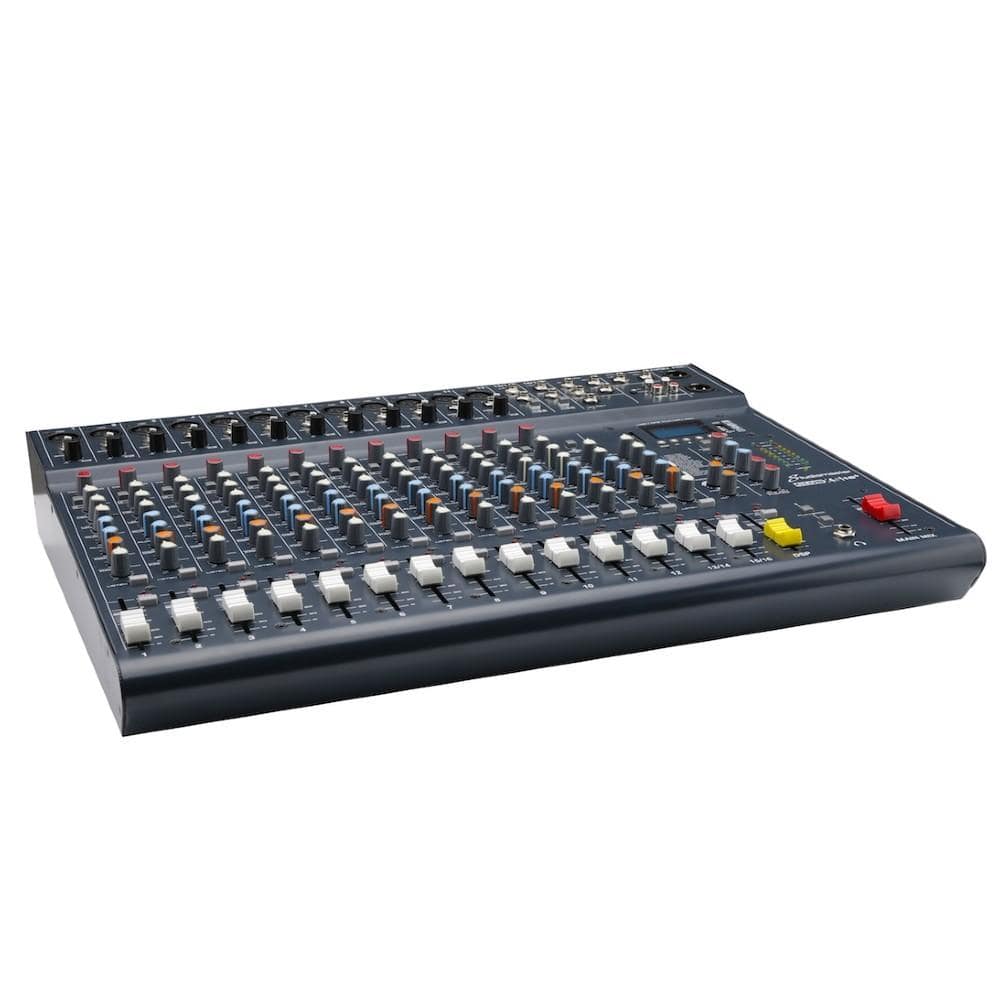

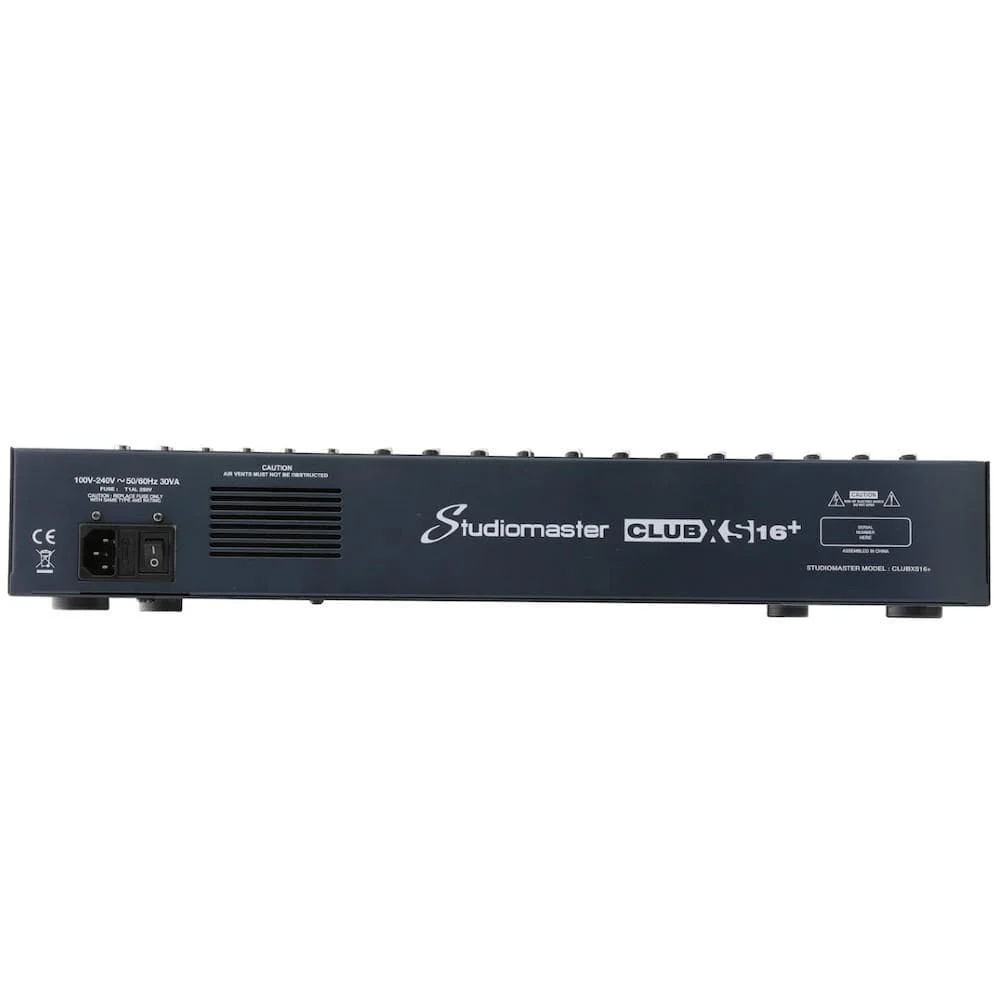

Studiomaster Club XS 16+ 16 Input Channel Analog Mixer

Studiomaster Club XS 16+ 16 Input Channel Analog Mixer Overview:

Compact, portable mixing consoles featuring 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions.

3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.

Ultra compact, light weight, high quality and extremely versatile, the Club XS is the perfect mixer for any live performance and home recording situation .

Features:

• 16 inputs
• 12 mic channels
• 2 stereo channels
• 2 AUX sends
• 16 DSP effects
• Foot switch socket for DSP
• PFL’s on all channels
• Bluetooth
• USB/SD media player

Specifications:

• Inputs: 16
• Mic Inputs: 12
• Stereo Inputs: 2
• Mic Gain Range: 6dB to 50dB
• Line Gain Range: 10dB to 34dB
• EIN: -100dB
• Frequency Responce: 10Hz – 20kHz (+1/-3dB)
• THD Mic Channel: <0.1%
• Signal to Noise Ratio: 80dB
• Output Levels: Max +26dB (Bal), +20dB (unBal)
• EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
• USB/SD: MP3 Audio playback
• Record: To USB drive or SD card (128kbps mono)
• DSP Effects: 16 DSP effects
• Power Requirements: 100V – 240V ~
• Dimension W*D*H: 385 x 527 x 85 (mm)

Made in China
