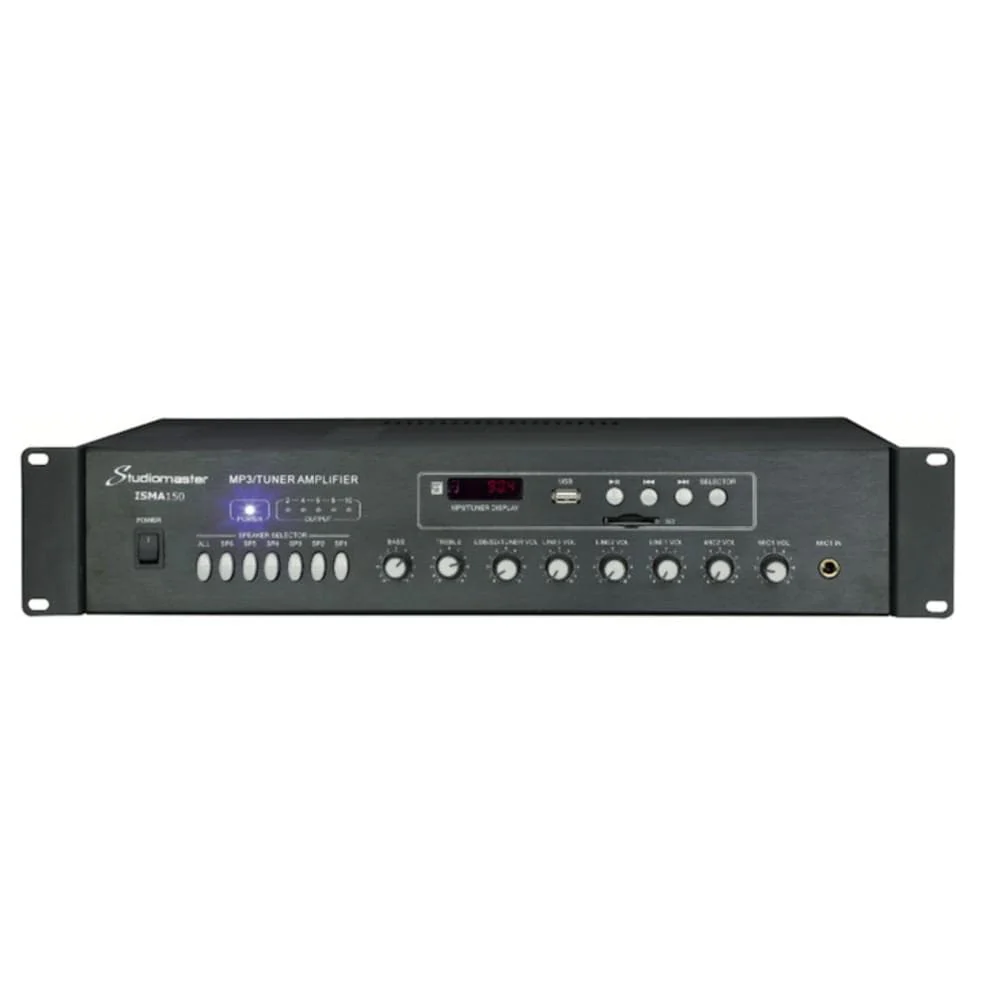

Studiomaster ISMA150 150W 100V Line Mixer Amplifier

Studiomaster ISMA150 150W 100V Line Mixer Amplifier:

• 2 mic, 2 line inputs, 150W 100V line 6 zone selectable outputs
• Built in MP3/USB/SDcard playback with FM tuner facility
• 2 band EQ on output
• Stable power handling ability, with low output noise/distortion
• High efficiency with intelligent fan cooling system
• Mic1 mute override function for priority broadcast
• Independent volume control for each zone
• 5 LED bargraph level display

Specifications:

• Rated Output Power: 150W
• Output range: Full load to no load ≤3dB
• Rated Output Voltage: 100V output
• Auxiliary Output Lvl: ≥900mV
• Sensitivity: MIC: ≤3.5mV, Line: ≤350mV
• Frequency Response: 80Hz-16KHz (±3dB)
• THD: ≤1% (1kHz, normal status)
• Bass range: ±12dB (100Hz)
• Treble range: ±12dB (10KHz)
• SNR: ≥80dB
• FM Range: 87.5MHz-108.0MHz
• MP3 Sensitivity: ≤350mV
• Protection: Fuse,output,short,circuit,overload
• Heat Dissipation: Cooling fan
• Mute Function: MIC1 overrides other input
• Power: AC220/50Hz
• Power Consumption: 220W
• Dimension: 485x330x88mm

Made in China
