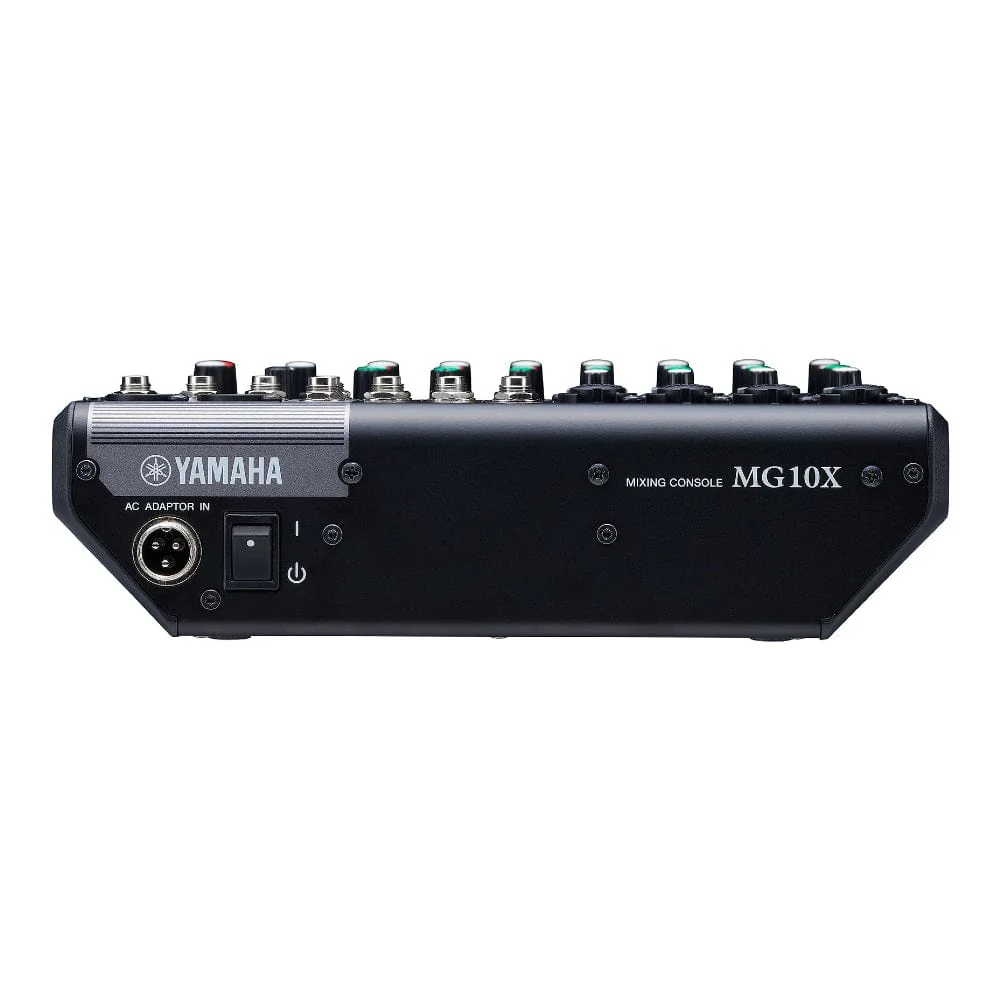

Yamaha MG10X CV 10-Channel Stereo Mixer

Yamaha MG10X CV 10-Channel Stereo Mixer Overview:

Road Tough. Studio Ready.
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Just like the XU models, SPX digital effects are included on these three X models. Excellent for portable use, but also great when installed in conference rooms, banquet halls and weddings, where users can have wide choice of effects to enhance their sound. Stylish grey color improves visual identification.

Features

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
• N\n
• Net Weight: 2.1 kg
\n

\n

Specifications

\n

\n
• On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
\n
• Phantom power: +48 V
\n
• Input Channels
\n
\n
• Mono[MIC/LINE]: 4
\n
• Stereo[LINE]: 3
\n
\n
• Output Channels
\n
\n
• Stereo Out: 2
\n
• Monitor Out: 1
\n
• Phones: 1
\n
• AUX Send: 1
\n
\n
• Bus: Stereo: 1, AUX[FX]: 1
\n
• Input Channel Function
\n
\n
• PAD: 26 dB (Mono)
\n
• HPF: 80 Hz, 12 dB/oct (Mono)
\n
• COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
\n
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
\n
• EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
\n
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
\n
• Peak LED: LED turns on when post EQ signal reaches 3 dB below clipping
\n
• Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
\n
\n
• Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
\n
• Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
\n
• Hum & noise level
\n
\n
• Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
\n
• Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
\n
\n
• Crosstalk: -83 dB
\n
• Power consumption: 22.9 W
\n
• Dimensions:
\n
\n
• W: 244 mm (9.6")
• H: 71 mm (2.8")
\n
• D: 294 mm (11.6")
• Net Weight: 2.1 kg
• Included Accessory: AC Adaptor, Owner’s Manual,
